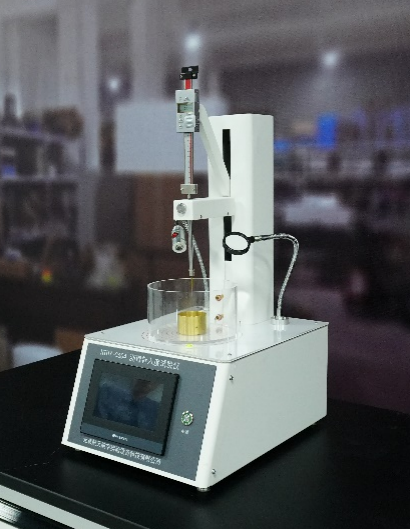

- The instrument features a 7-inch high-definition, bright, full-view touchscreen for control and display, achieving efficient integration of control and display.

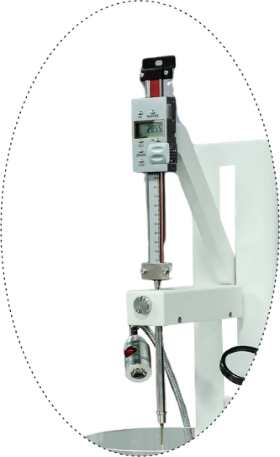

- It is equipped with a digitally zeroed, micrometer-scale, providing stable and accurate data with a precision of 1 needle penetration. Zeroing and memory functions ensure stable and traceable data.
- The instrument is equipped with a constant-temperature water bath and a matching constant-temperature bathtub to guarantee the required temperature environment for the sample, with a temperature control accuracy of ±0.1℃.
- It includes a cold light source illumination device and a magnifying glass for convenient and precise use and operation during testing.
- The maximum measurable needle penetration value is no less than 600 units, meeting the requirements for higher needle penetration tests.
- It employs an electromagnetic release mechanism, integrating automatic needle lowering and intelligent locking functions to ensure precise and controllable needle lowering.
- Manual needle alignment is required before the instrument automatically lowers the needle; experimental results must be recorded.
| Technical parameters
|
|
| Measurement range | 0-600 needle penetration |
| Time setting | Settable range: 0s to 60s |
| Penetration accuracy | 0.1 needle penetration, high measurement accuracy |
| Weight of weights | 50g, providing standard load weight |
| Standard needle | Needle length: 50±1mm (suitable for needle penetration 0～350)
Weight: 2.5g±0.05g |
| Extended needle | The needle length is 60±1mm (suitable for a needle penetration of 350～500). |
| Sample dish specifications | Small sample dish, inner diameter φ55×35mm (suitable for penetration less than 200).
Large sample dish, φ70×45mm (suitable for penetration 200～350). Special sample dish, φ70×80mm (suitable for penetration 350～500). |
| Constant temperature water bath (optional) | It provides a circulating, constant-temperature fiberglass water bath with a temperature control accuracy of ±0.1℃. |
| power supply | 220V 50Hz |
| Power | 200w |
| External dimensions | 360×460×800mm |
| weight | 15Kg |
