HTHY-0658 Emulsified Asphalt Demulsification Performance Tester

Equipment Features

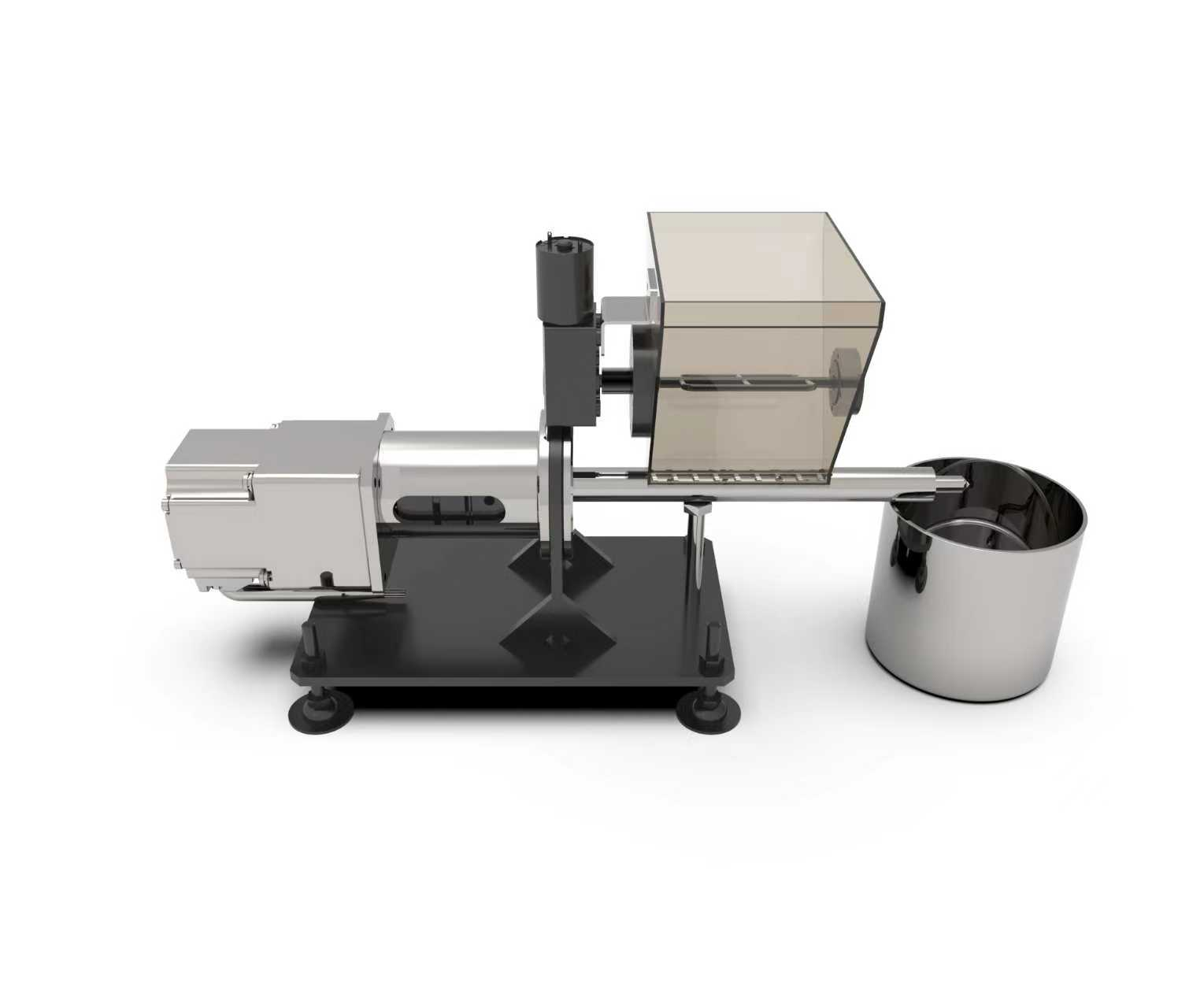

Precise and controllable feeder:

• Precise feeding speed adjustment: Driven by a DC geared motor, the feeding speed is 35g/s ± 0.10g/s.
• Material bridging device: The hopper is equipped with a rotating agitator and vibration device to prevent material bridging.

High degree of automation mixer:

• The stirrer features automatic height adjustment for convenient operation and cleaning.
• The stirring paddle is driven by an electric motor with a stable and adjustable speed, ensuring thorough mixing and mass transfer of materials and guaranteeing reliable test results. The stirring paddle is made of corrosion-resistant material, is not easily damaged, and has a long service life.

Intuitive human-computer interaction:

• 7-inch industrial-grade touchscreen: Provides a clear and responsive user interface.

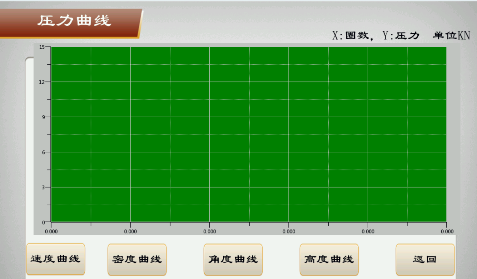

• Real-time data visualization: Automatically calculates BV values ​​and displays the curve relationship between mineral powder quantity and stirring torque. Automatically calculates stirring torque, demulsification time, and demulsification degree.
• Data logging and export: Completely records data and supports USB export for subsequent analysis.

Equipment parameters
