Development Background

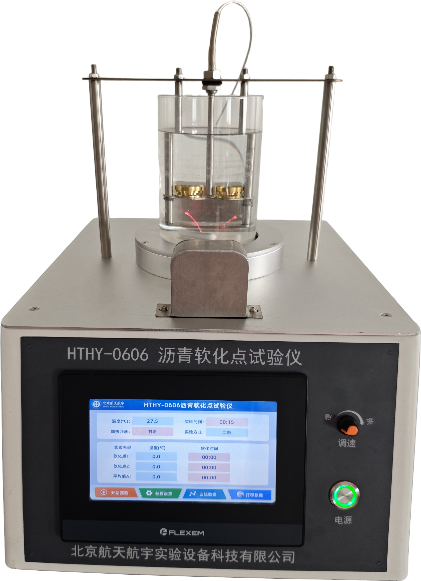

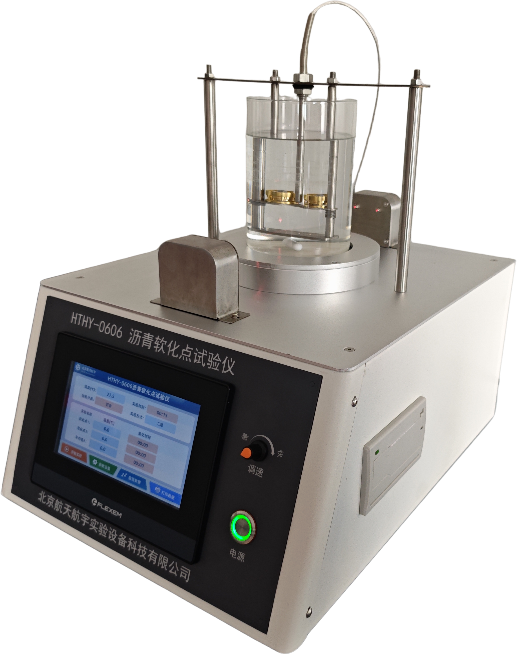

Specifically designed for the determination of softening point of asphalt materials, this instrument is applicable to various mainstream asphalt products, including road petroleum asphalt, coal tar pitch, and liquid petroleum asphalt, accurately meeting testing needs in different scenarios. Its applications are wide-ranging, encompassing asphalt production enterprises (quality control), highway and bridge construction units (construction material acceptance), and related universities and research institutions (teaching experiments and technology development), making it a core piece of equipment in the field of asphalt material performance testing.
Core Advantages
The instrument is equipped with a fully automated testing and temperature control system independently developed by our company. Leveraging high-precision temperature control algorithms and intelligent testing logic, it achieves automated and standardized operation of the testing process, effectively avoiding human error. The system performance fully complies with the latest industry standard JTG 3410-2025/T0606 “Asphalt Softening Point Test (Ring and Ball Method),” ensuring the accuracy, reliability, and compliance of test data, providing authoritative technical support for asphalt material quality assessment.
Features
- Equipped with an external bottom heating module, the heating element is not inside the beaker, ensuring both temperature control accuracy and heating mode meet the new standards.
- It features a 7-inch high-definition, bright, full-view touchscreen for control and display.
- It has a magnetic oscillation stirring function to ensure uniform temperature distribution of the medium, with a controllable and stable heating rate within the standard range.
- It employs dual control of PWM regulation and PID temperature control to precisely avoid temperature overshoot, while simultaneously displaying the heating curve in real time for full visualization.
- Temperature control rate and ball drop detection are all completed automatically, requiring no manual intervention.
- It includes a thermal printer for real-time printing of test results.
- A standard thermal printer allows for real-time printing of test results, making data retention convenient and efficient.
- It has a USB communication port for saving temperature control parameter tables; if special needs are required, network communication functionality can be added.
| Technical parameters
|
|
| The sample softening point is ≤80℃ | 5℃～80℃ |
| Sample softening point > 80℃ | 32℃～160℃ |
| heating rate of the medium “water” | The temperature was automatically adjusted to and stabilized at (5±0.5) ℃/min 3 minutes after the start of the experiment. |
| heating rate of the medium “glycerol” | After heating to 60℃, the temperature automatically adjusts to a stable level of (5±0.5)℃/min. |
| Stirring oscillator | φ8×40mm |
| steel ball diameter | φ9.5mm |
| steel ball weight | 3.5±0.05g |
| beaker capacity | Approximately 1000ml |
| Temperature resolution | 0.1℃ |
| power supply | 220V 50Hz |
| Power | 1200w |
| External dimensions | 360×460×450（mm） |
| weight | 15Kg |
Software Interface

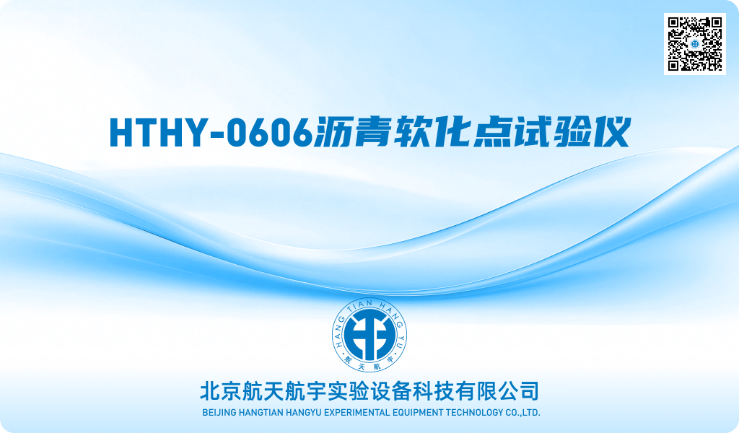

Startup Screen

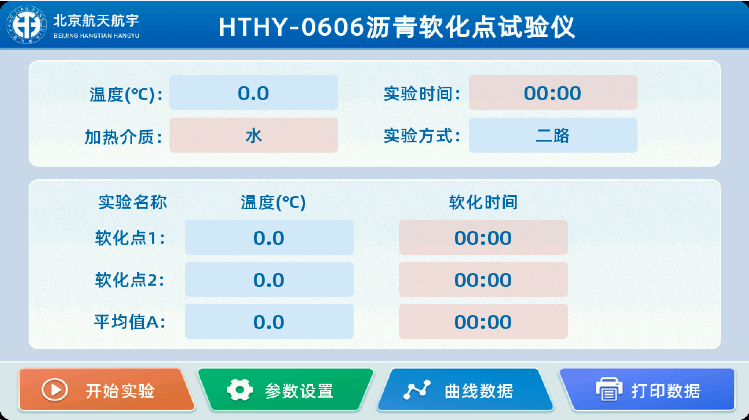

Test selection interface

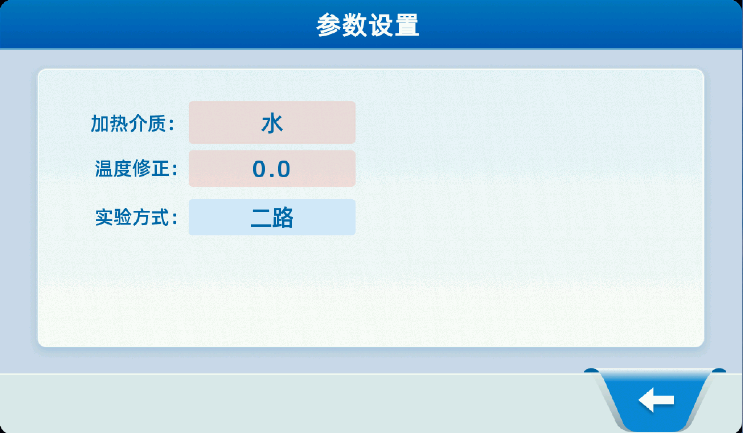

Parameter setting interface

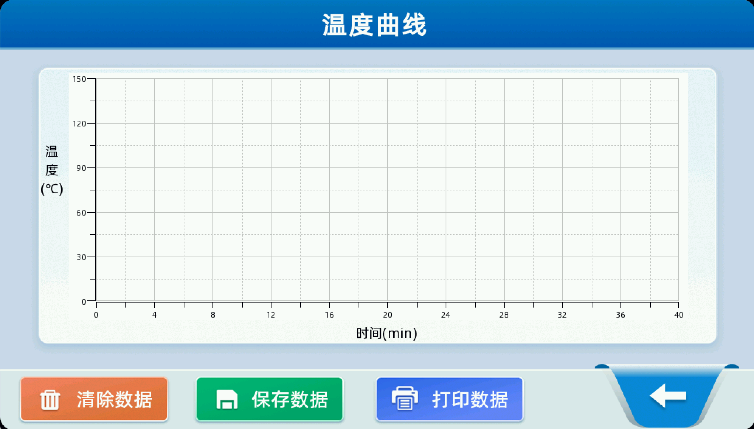

Time/Temperature Profile Interface
