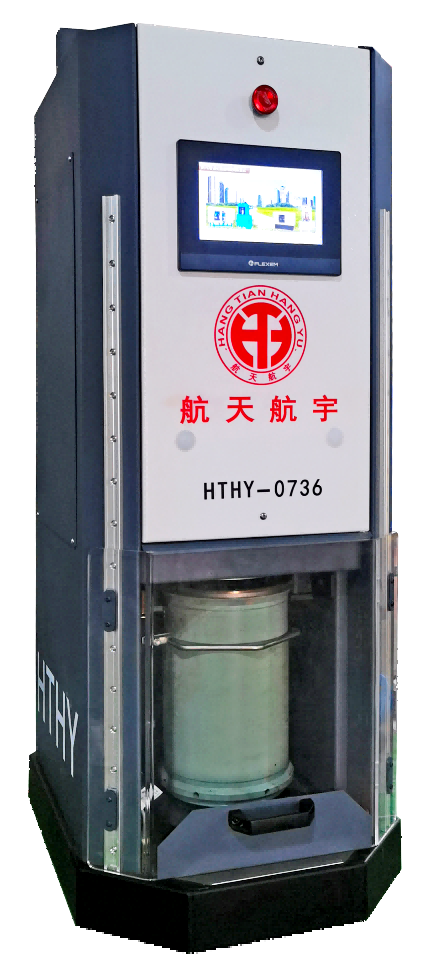

HTHY-0736 Rotary Compactor

Related Products

Product Introduction

Specifications

Introduction

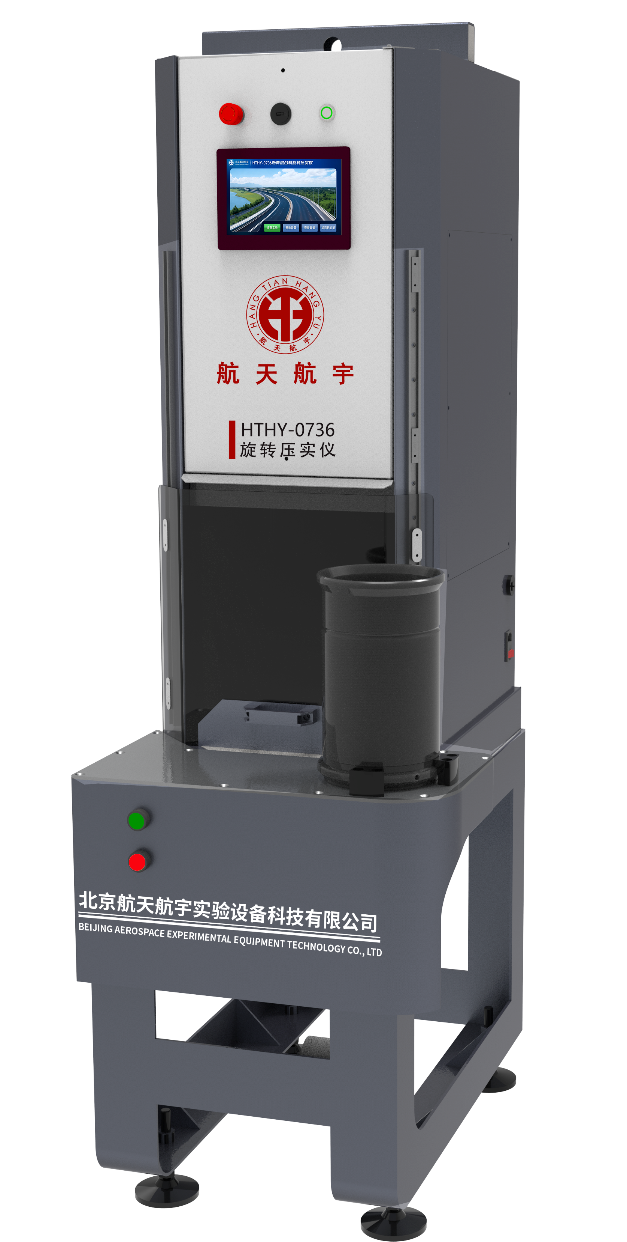

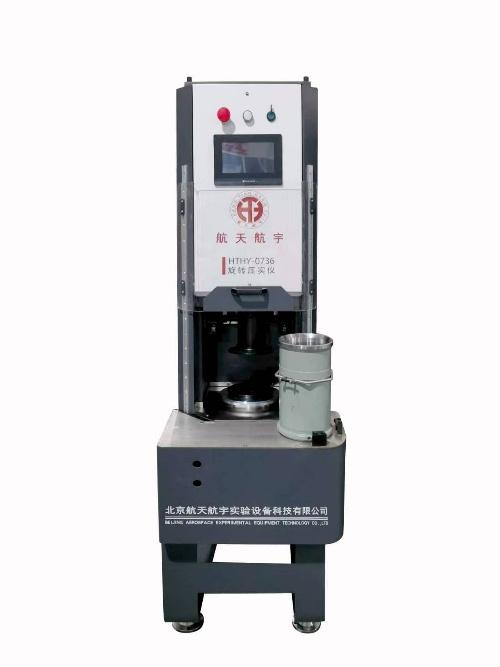

The HTHY-0736 rotary compactor is a device that uses rotary compaction to form cylindrical asphalt mixture specimens for testing various properties of asphalt mixtures. The device employs electric loading, subjecting the specimen to both the vertical downward pressure of the compactor head and the shear force generated by the tilting and rotating mold during compaction. This simulates and reproduces the on-site compaction conditions during paving, ensuring the compaction quality of the tested specimens. The internal aggregate arrangement of the specimen is highly consistent with that of actual pavement, and the test data can effectively guide mix design and construction quality control. It is particularly suitable for the research and verification of new asphalt mixtures such as Superpave and SMA.

Complies with Standards: JTG 3410 T0736 AASHT312 EN 12697-31 ASTM D6925

Equipment Features

High rigidity and lightweight design:

Employing a high-rigidity structural steel frame, it achieves weight optimization while ensuring equipment stability and resistance to deformation, making it an ideal choice for mobile laboratories or space-constrained environments.

Precise and controllable rotary compaction process:

Pressure Control: Utilizes a high-precision coaxial pressure sensor (±0.1%FS) to ensure the accuracy and stability of vertical compaction force.
Angle Control: The inner rotation angle is continuously adjustable from 0.7° to 1.4° to meet different standard requirements (factory default setting is 16°).
Stroke Control: Precisely controls compaction height or the number of compaction revolutions.

Excellent reliability and repeatability:

The robust design, precise controls, and high-quality components together ensure the high reliability of the equipment and the repeatability of test results during long-term continuous operation and large-scale sample testing.

Clean and quiet electric drive:

Employing a high-performance electric actuator, it requires only a standard single-phase power supply, completely eliminating the need for a bulky and noisy external air compressor, significantly reducing operating noise and improving the laboratory environment.

Intuitive human-computer interaction:

7-inch industrial-grade touchscreen: Provides a clear and responsive user interface.

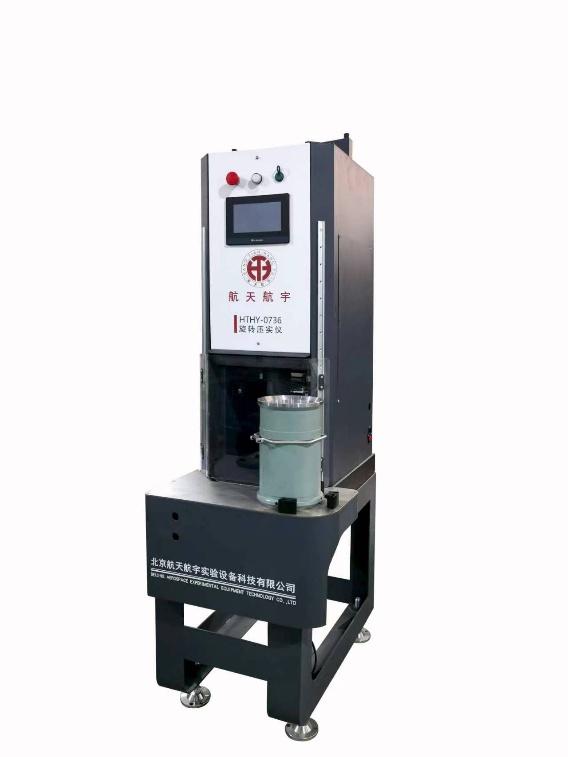

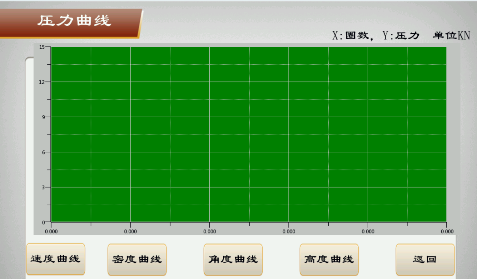

Real-time data visualization: Dynamically displays relevant curves such as “pressure-number of revolutions” and “height-number of revolutions” during the compaction process, facilitating immediate monitoring and process analysis.
Data logging and export: Completely records data and supports USB export for subsequent analysis.

Convenient and safe operation:

Transparent glass door: facilitates observation of the compaction process while ensuring operational safety; it can slide to facilitate quick loading and unloading of the test mold.

Equipment parameters

Loading method	electric	Pressure sensor range	0~30kN
Maximum loading capacity	25kN	Pressure sensor accuracy	±0.1%FS

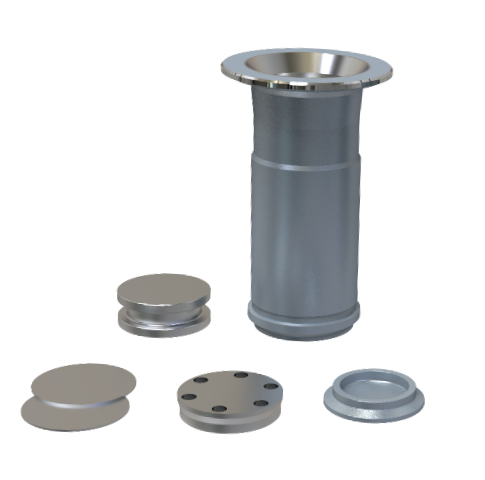

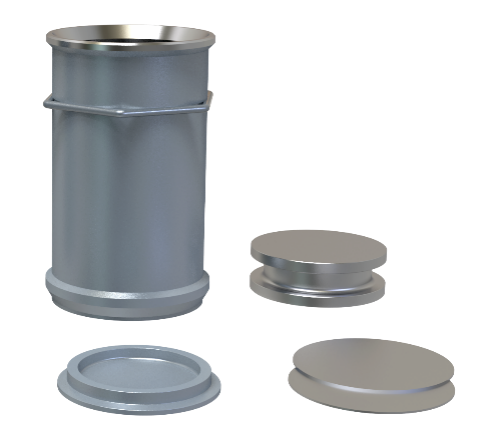

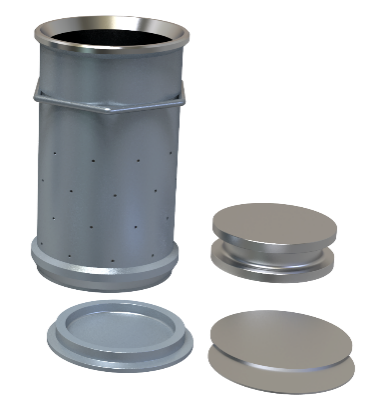

Specimen size	• φ150mmx(90~200)mm • φ100mmx(90~125)mm	Test termination conditions	• Specimen height stopped • Compaction ring count stopped
Rotation speed	30r/min	Maximum number of rotations	999 times
Internal rotation angle range	0.7°~1.4°, factory setting 1.16°	Data export	USB
Power requirements	220V±10V 50Hz	Total power	1200W
External dimensions	450x615x1140（mm）	weight	100kg
